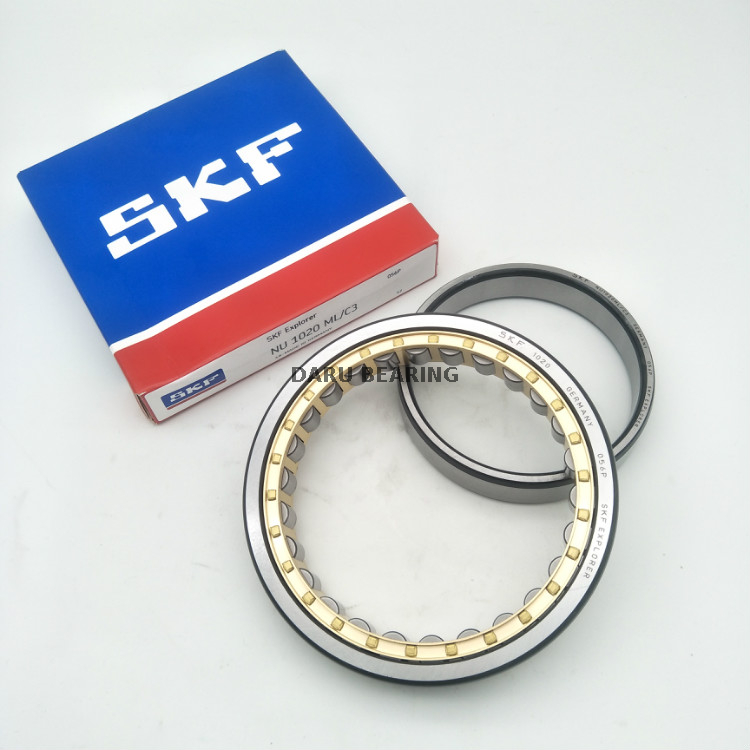

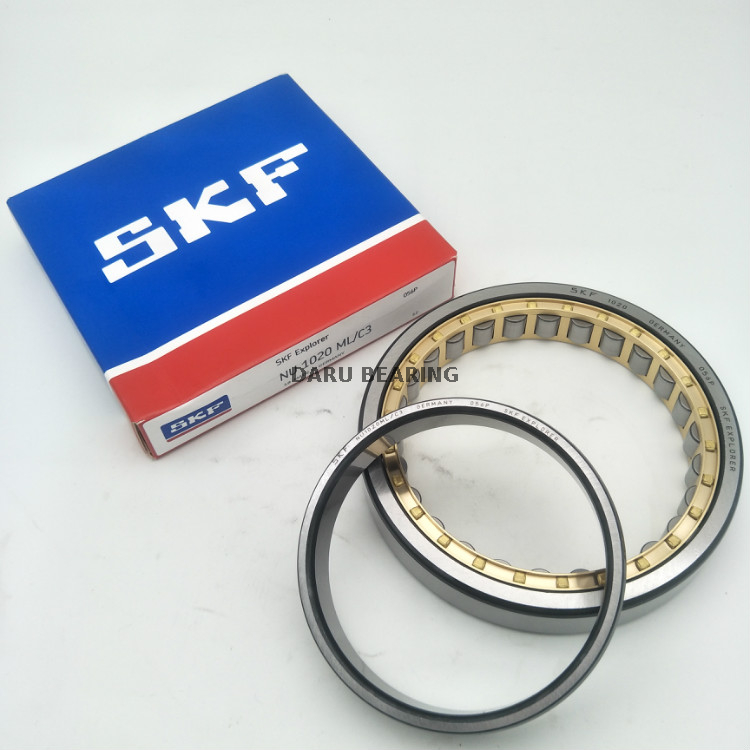

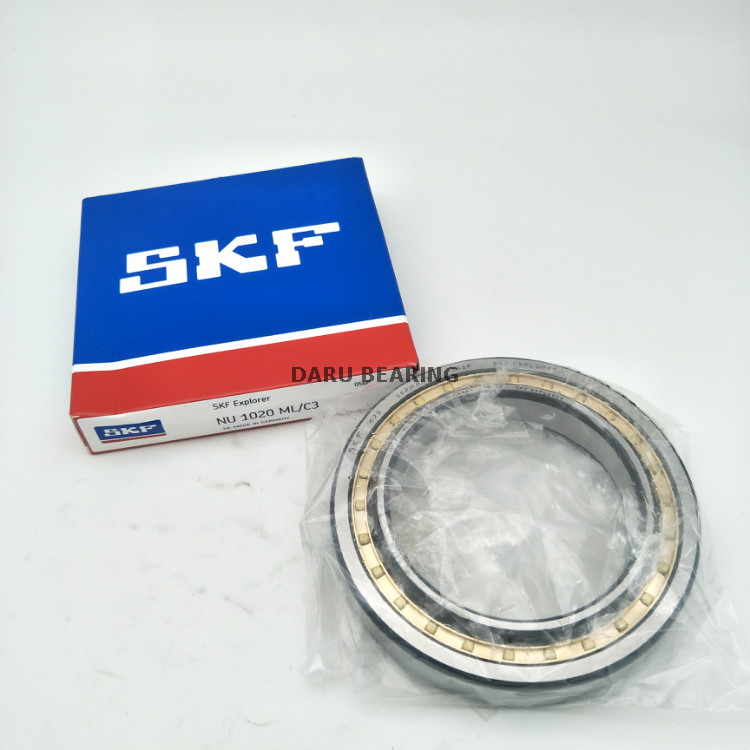

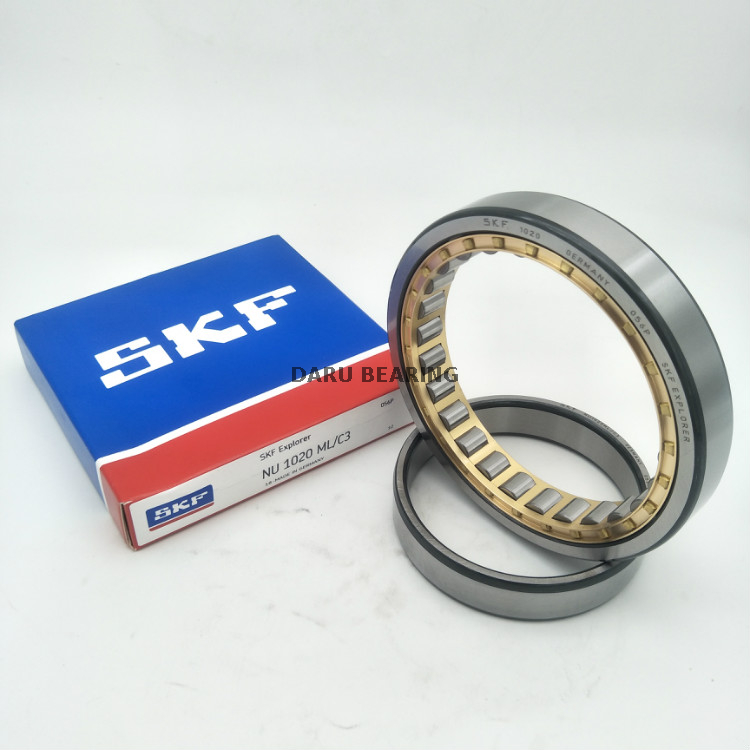

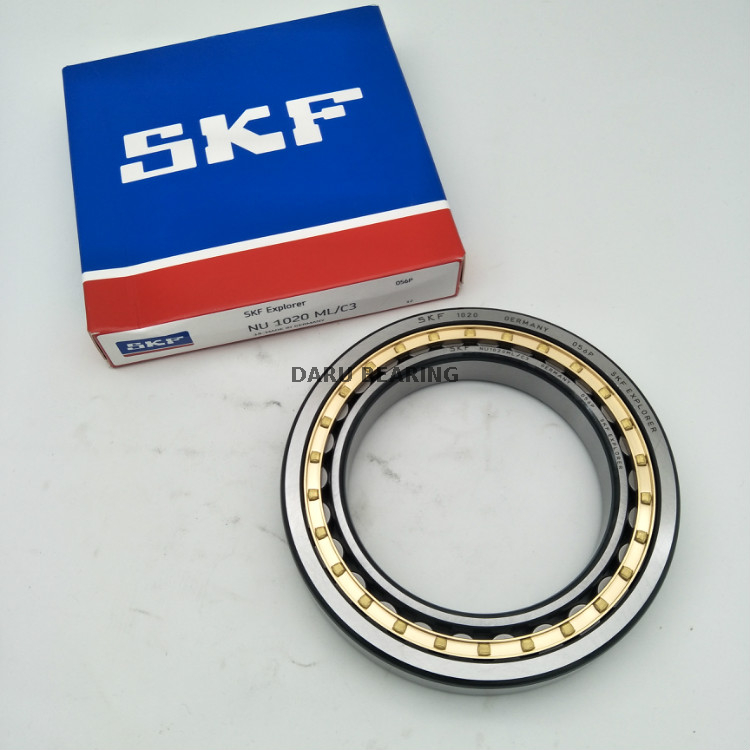

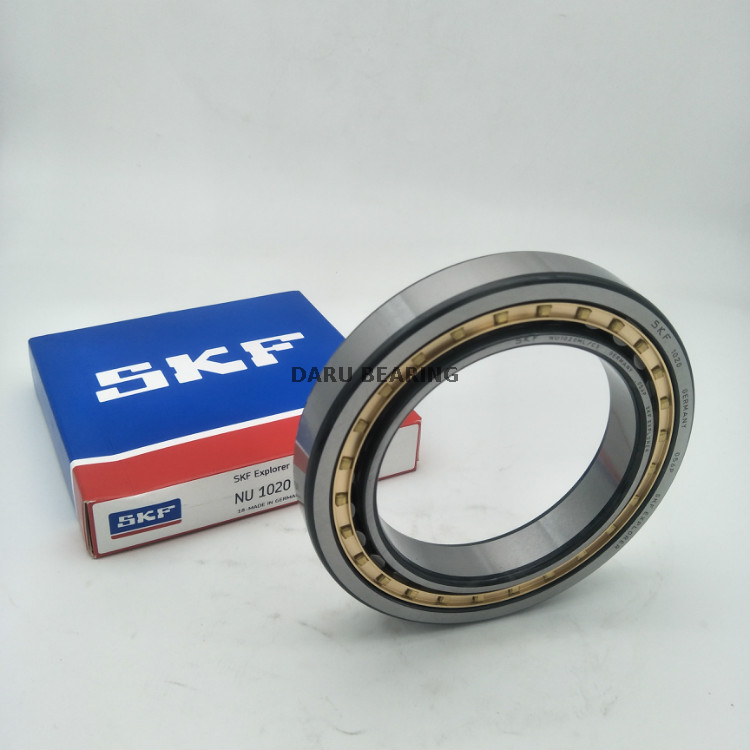

SKF Cylindrical Roller Bearing NU1020ML/C3
| Quantity: | |
|---|---|
-
NU1020ML/C3
-
SKF
Quick Details
Type:
Roller, Roller
Structure:
Cylindrical, Cylindrical
Applicable Industries:
Manufacturing Plant, Machinery Repair Shops, Farms, Energy & Mining
Brand Name:
SKF bearing NU1020ML/C3 NJ1020ECM N1020ECM
Model Number:
NU1020ML/C3 NU1020ECM
Precision Rating:
P0 P6 P5 P4 P2
Seals Type:
Open
Number of Row:
Single Row
Place of Origin:
GERMANY
Product name:
Cylindrical Roller Bearing NU1020ML/C3
Material:
Chrome Steel
Certification:
ISO9001:2008
Feature:
Stable Performance:low Voice
Lubrication:
Oil Grease Dry
Dimension:
100*150*24mm
Reference Speed:
6000 r/min
Limit Speed:
7000 r/min
Supply Ability
100000 Piece/Pieces per Month
Cylindrical roller bearing can be used in many areas
Casting cements,rolling mills,conveyors in iron and steel industry
Crushing machines in the cement industry
Roling dryers,pulpers,squeezers,press masters,water extractors,pumps in paper-making industry
Gear boxes in shipbuilding industry
Spinning machines,coal pulverizers,air blowers,rolling machines,generators,elevators,machine tools,vibrating screens,main spindles for wind turbines,etc.
圆柱滚子轴承型号 | 外型尺寸 | 额定负荷(kN) | 质量 | ||||
d | D | B | 动负荷 | 静负荷 | kg | ||
N0040 | 200 | 310 | 34 | 280 | 300 | 10.2 | |
NU1040 | 200 | 310 | 51 | 405 | 360 | 14.3 | |
NJ1040 | 200 | 310 | 51 | 405 | 360 | 14.7 | |
N240 | 200 | 360 | 58 | 595 | 525 | 26.8 | |
NU240 | 200 | 360 | 58 | 595 | 525 | 26.5 | |
NJ240 | 200 | 360 | 58 | 595 | 525 | 27.1 | |
N2340 | 200 | 420 | 138 | 1570 | 1500 | 94.5 | |
NU3340 | 200 | 420 | 165 | 1920 | 2020 | 118 | |
NU1044 | 220 | 340 | 56 | 470 | 371 | 19.3 | |
NJ1044 | 220 | 340 | 56 | 460 | 415 | 19.6 | |
NU1044N | 220 | 340 | 56 | 470 | 371 | 18.9 | |
NU644 | 220 | 350 | 98.42 | 1070 | 1050 | 37.5 | |
N244 | 220 | 400 | 65 | 725 | 650 | 36.7 | |
NU244 | 220 | 400 | 65 | 725 | 650 | 35 | |
NJ244 | 220 | 400 | 65 | 725 | 650 | 35.4 | |
NU2244 | 220 | 400 | 108 | 1080 | 1080 | 62.2 | |
NU344 | 220 | 460 | 88 | 110 | 945 | 73.4 | |
NU2344E | 220 | 460 | 145 | 1910 | 1870 | 114 | |
N0048 | 240 | 360 | 37 | 388 | 392 | 14.7 | |
NU1048 | 240 | 360 | 56 | 497 | 480 | 20.4 | |
NJ1048 | 240 | 360 | 56 | 497 | 488 | 21 | |
NU248 | 240 | 440 | 72 | 900 | 815 | 46.9 | |
NJ248 | 240 | 440 | 72 | 900 | 815 | 49.6 | |
NU348 | 240 | 500 | 95 | 1350 | 1130 | 97.7 | |
NUP248 | 240 | 440 | 72 | 880 | 1345 | 48.2 | |
NU348 | 240 | 500 | 95 | 1340 | 2060 | 82.4 | |
N650 | 250 | 380 | 50 | 600 | 643 | 19.8 | |
N0052 | 260 | 400 | 44 | 552 | 603 | 22.7 | |
NU1052 | 260 | 400 | 65 | 621 | 630 | 29.4 | |
NUP1052 | 260 | 400 | 65 | 621 | 630 | 29.5 | |
N1052 | 260 | 400 | 65 | 621 | 630 | 30.8 | |
NU1052 | 260 | 400 | 65 | 621 | 630 | 29.4 | |
NU252 | 260 | 480 | 80 | 1070 | 965 | 67.1 | |
NU1056 | 280 | 420 | 65 | 627 | 625 | 33.4 | |
NU1060 | 300 | 460 | 74 | 855 | 952 | 44.4 | |
NJ1060 | 300 | 460 | 74 | 815 | 780 | 45.1 | |
NU3060 | 300 | 460 | 118 | 1690 | 1800 | 72 | |
NU260 | 300 | 540 | 85 | 1290 | 1200 | 86.9 | |
NU360 | 300 | 620 | 109 | 2010 | 1840 | 166 | |
NJ1064 | 320 | 480 | 74 | 820 | 800 | 47.8 | |
NU1064 | 320 | 480 | 74 | 848 | 895 | 47 | |
N0068 | 340 | 520 | 57 | 995 | 935 | 45.5 | |
N668 | 340 | 530 | 133.25 | 1660 | 1810 | 117 | |
NU2272E | 360 | 650 | 170 | 2750 | 2920 | 263 | |
NU2372 | 360 | 750 | 224 | 4760 | 5400 | 485 | |
N2876 | 380 | 480 | 60 | 647 | 756 | 24.6 | |
NU1980 | 400 | 540 | 65 | 785 | 988 | 42.7 | |
NU1080 | 400 | 600 | 90 | 1350 | 1460 | 88.8 | |
NU3080 | 400 | 600 | 148 | 2150 | 3300 | 144.5 | |
N2180 | 400 | 650 | 145 | 2830 | 3030 | 190 | |
NU688 | 440 | 546 | 46 | 413 | 476 | 26.5 | |
N1188 | 440 | 720 | 122 | 2320 | 2220 | 191 | |
N2992 | 460 | 620 | 95 | 1340 | 2060 | 82.4 | |
NU2992 | 460 | 620 | 95 | 1340 | 2060 | 84 | |
NU29/500 | 500 | 670 | 100 | 2000 | 2410 | 99.5 | |
NU29/530 | 530 | 710 | 106 | 2170 | 2530 | 123 | |
N19/630 | 630 | 850 | 100 | 1850 | 2530 | 160 | |
NU29/630 | 630 | 850 | 128 | 3050 | 4260 | 206 | |
NU6/700 | 700 | 930 | 160 | 3200 | 4580 | 295 | |
N19/710 | 710 | 950 | 106 | 2300 | 3250 | 205 | |
NU19/710 | 710 | 950 | 106 | 2300 | 3250 | 207 | |
N6/840 | 840 | 1040 | 125 | 2530 | 5290 | 240 | |
NU29/950 | 950 | 1250 | 170 | 5270 | 9120 | 563 | |
N39/950 | 950 | 1250 | 224 | 6780 | 10500 | 745 | |
双列圆柱滚子轴承 | |||||||
NN3052K | 260 | 400 | 104 | 969 | 1810 | 47.1 | |
NN3052 | 260 | 400 | 104 | 969 | 1810 | 48.5 | |
NN3056K | 280 | 420 | 106 | 1020 | 1950 | 49.1 | |
NN3056 | 280 | 420 | 106 | 1020 | 1950 | 49.87 | |
NN3060 | 300 | 460 | 118 | 1180 | 2250 | 71.7 | |
NN3060/Y1 | 300 | 460 | 118 | 1180 | 2250 | 71.2 | |
NN3060K | 300 | 460 | 118 | 1180 | 2250 | 69.6 | |
NN3064K | 320 | 480 | 121 | 1250 | 2450 | 75 | |
NN3068K | 340 | 520 | 133 | 1560 | 3020 | 101 | |
NN3068 | 340 | 520 | 133 | 1560 | 3020 | 104 | |
NN3072K | 360 | 540 | 134 | 1630 | 3240 | 106 | |
NN3076K | 380 | 560 | 135 | 1590 | 3240 | 110 | |
NN3076 | 380 | 560 | 135 | 1590 | 3240 | 114 | |
NN3176V | 380 | 620 | 194 | 2700 | 5800 | 221 | |
NN3980K | 400 | 540 | 108 | 1240 | 2400 | 71.3 | |
NN3080K | 400 | 600 | 148 | 1980 | 3660 | 143 | |
NN3080 | 400 | 600 | 148 | 1980 | 3660 | 147 | |
NN3092K | 460 | 680 | 168 | 2470 | 5070 | 204 | |
NN39/560 | 560 | 750 | 140 | 2370 | 4860 | 188 | |
NN6/560 | 560 | 780 | 180 | 2400 | 6400 | 266 | |
NN30/560K | 560 | 820 | 195 | 2460 | 6560 | 341 | |
NN30/670 | 670 | 980 | 280 | 4620 | 9360 | 597 | |
四列圆柱滚子轴承 | |||||||
FCD6496290 | 320 | 480 | 290 | 3420 | 7200 | 186 | |
FCD6496350 | 320 | 480 | 350 | 4700 | 10200 | 225 | |
FCD6896350 | 340 | 480 | 350 | 4340 | 10200 | 230 | |
FCD74104380 | 370 | 520 | 380 | 4430 | 10600 | 253 | |
FCD96140400 | 480 | 700 | 400 | 6600 | 15100 | 508 | |
FCD100134450 | 500 | 670 | 450 | 7830 | 202000 | 441 | |
FCD114163594 | 570 | 815 | 594 | 11400 | 29700 | 1070 | |
FCD152216788 | 760 | 1080 | 788 | 20100 | 55500 | 2403 | |
FCD166216710 | 830 | 1080 | 710 | 18000 | 50000 | 1746 | |
FCD190260850 | 950 | 1300 | 850 | 29000 | 92000 | 3523 | |
